Omron Portable 6-Lead ECG Heart Rate Monitor HCG-8060T | Detailed Heart Rhythm Information & Monitoring

Omron Portable 6-Lead ECG Heart Rate Monitor HCG-8060T | Detailed Heart Rhythm Information & Monitoring

Product Overview

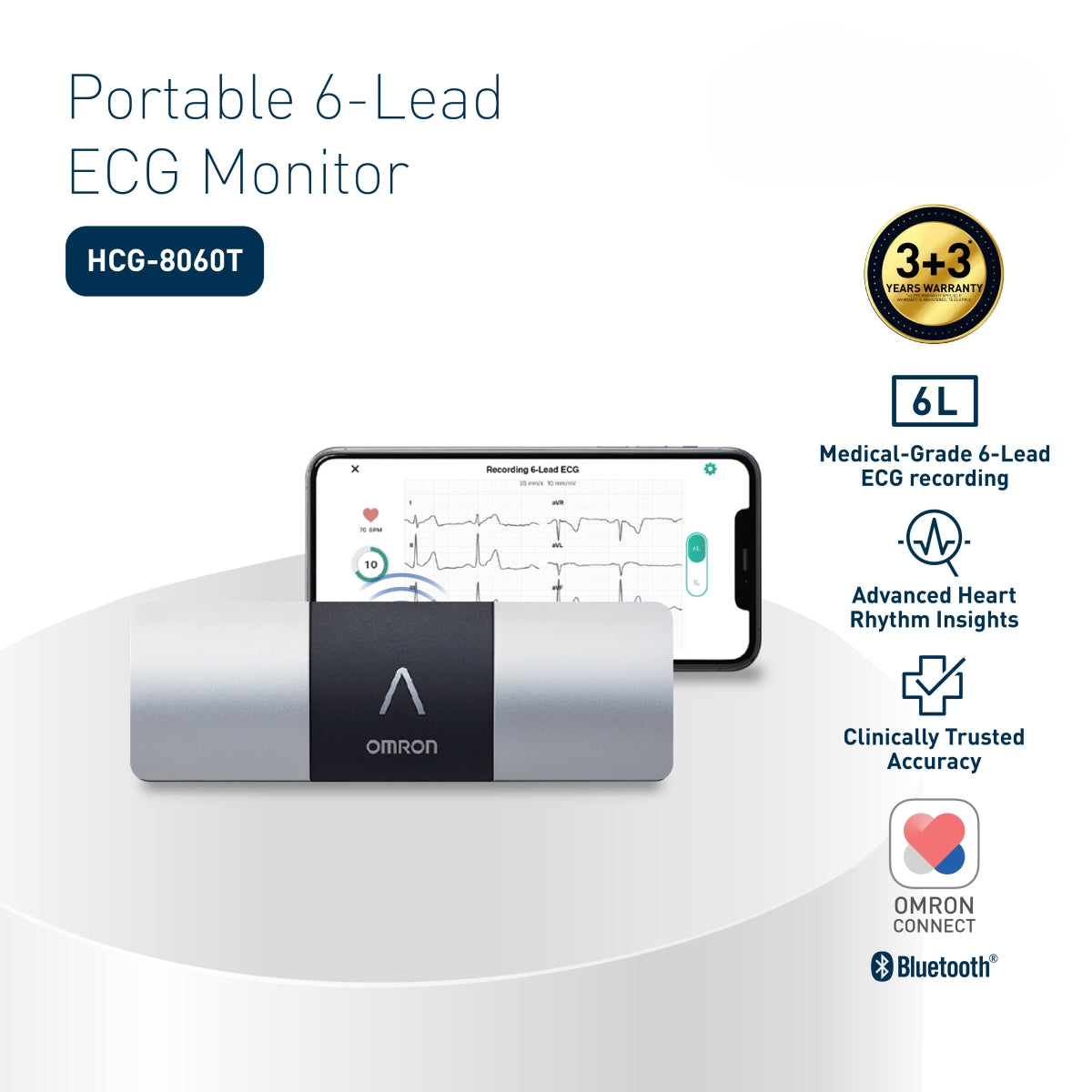

Want a clearer picture of your heart rhythm at home? 💙 The OMRON HCG-8060T records six ECG leads and connects to your smartphone through OMRON connect. Save your recordings, track changes over time and share information with your healthcare professional—all with a compact device that fits easily into your routine. Take the next step in your clinician-recommended home monitoring with OMRON.

Intended Use / Key Benefits

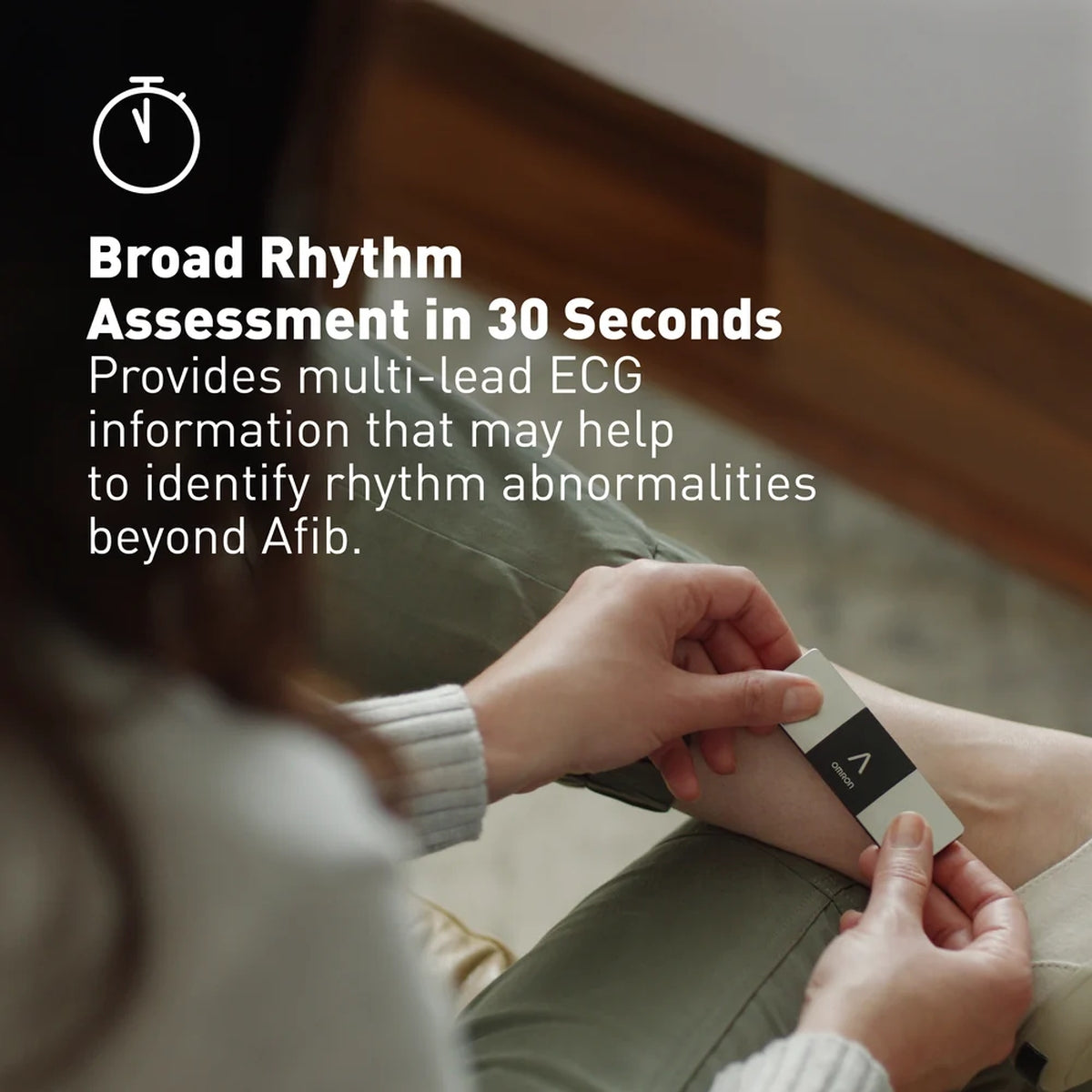

• Medical-grade ECG recording with a default recording duration of 30 seconds.
• Six-lead mode records leads I, II, III, aVR, aVL and aVF.
• Single-lead mode records the equivalent of Lead I.
• Guided electrode placement helps simplify recording.
• View ECG waveforms and heart rate on your smartphone.
• Bluetooth Low Energy connectivity supports convenient recording and sharing.

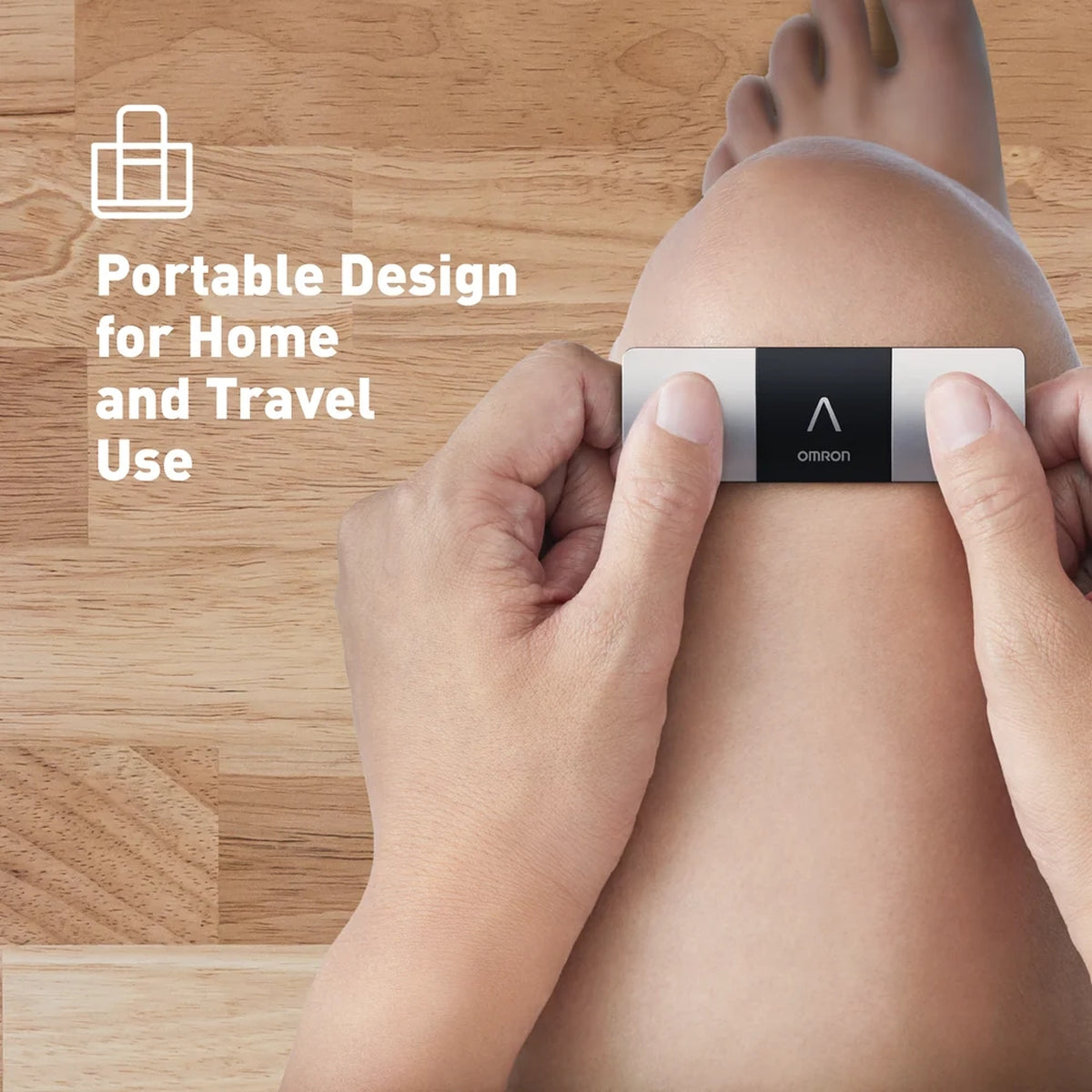

• Compact design for use at home and while travelling.

Suitable For / Usage Scenario
Adults seeking home ECG recording, including those advised by a healthcare professional to monitor their heart rhythm. Users must be able to understand and follow the operating instructions.

Product Information / Specifications

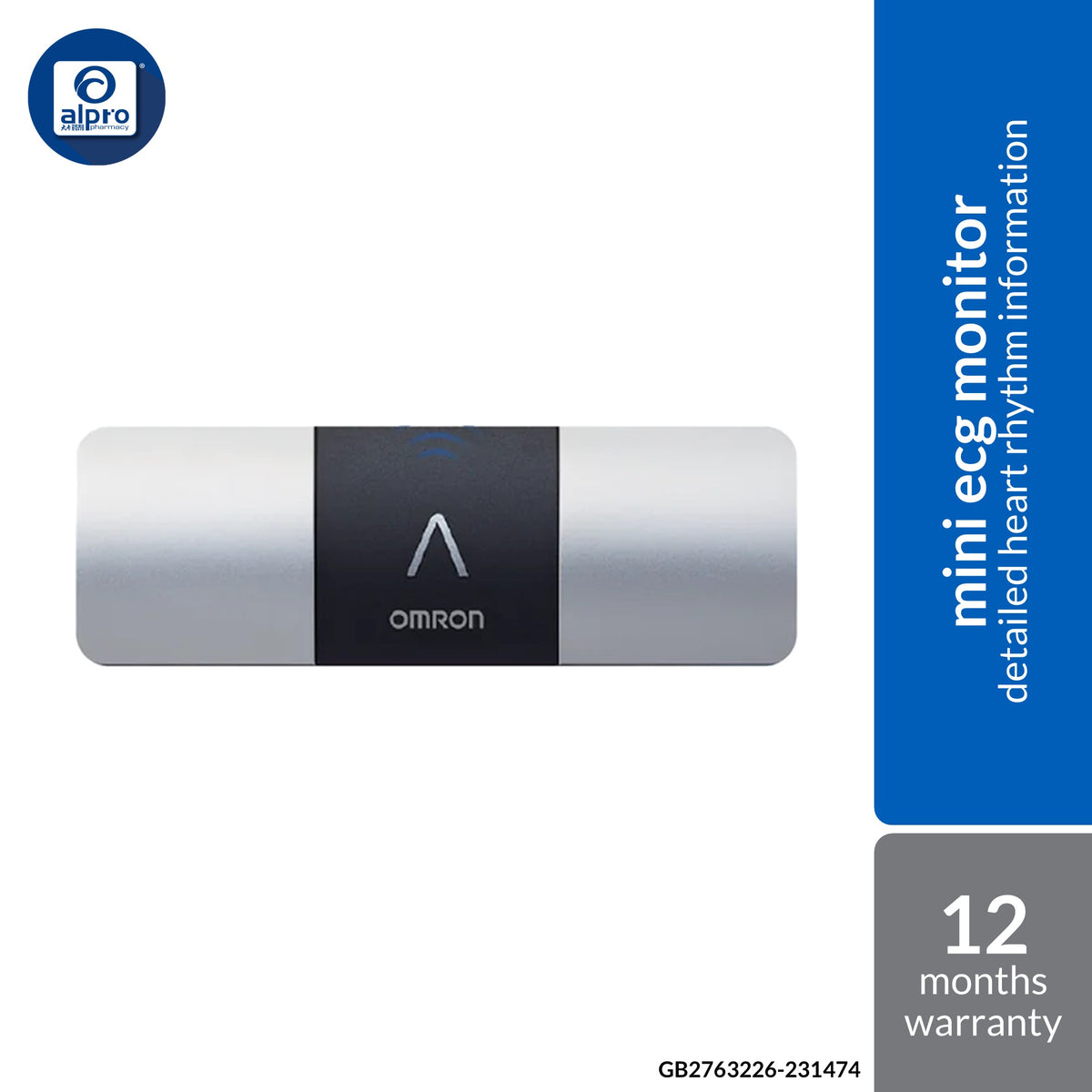

• Brand / Model: OMRON HCG-8060T.
• Dimensions: approximately 90 × 30 × 7.4 mm (width × length × height).
• Weight: approximately 24 g, including battery.
• Heart-rate measurement range: 30–300 bpm; resolution: 1 bpm during ECG recording.
• Heart-rate accuracy: ±5 beats within supported analysis categories.
• Frequency response: 0.67–40 Hz.
• Storage: recordings are saved in the smartphone app; capacity depends on available phone storage.
• Power: DC 3 V; one non-rechargeable CR2016 lithium battery.
• Battery life: approximately 12 months / 200 hours under manufacturer test conditions.
• Service life: 5 years, based on twice-daily use.
• Signal specifications: 300 Hz sampling; 10 mV peak-to-peak input; CMRR >60 dB; input impedance >10 MΩ.
• Wireless: 2400–2483.5 MHz; GFSK; radiated power <20 dBm.
• Protection: IP22; Type CF electrodes; internally powered; continuous operation; electrode temperature below 48°C.
• App settings: recording duration, enhanced filter, single-lead inversion and 50/60 Hz mains filter.
• Made in Malaysia.
• Compatibility: requires a supported iPhone or Android smartphone with OMRON connect. Compatibility depends on the phone model and operating system.
• Warranty: 1-year standard warranty for eligible Malaysian purchases. Register within 10 days of purchase and retain proof of purchase. Batteries, normal wear and misuse are excluded.

How to Use
1. Install OMRON connect, enable Bluetooth and pair the monitor.
2. Sit comfortably with your smartphone nearby. Disconnect charging cables, headphones and other wired accessories.
3. Select single-lead or six-lead recording in the app.

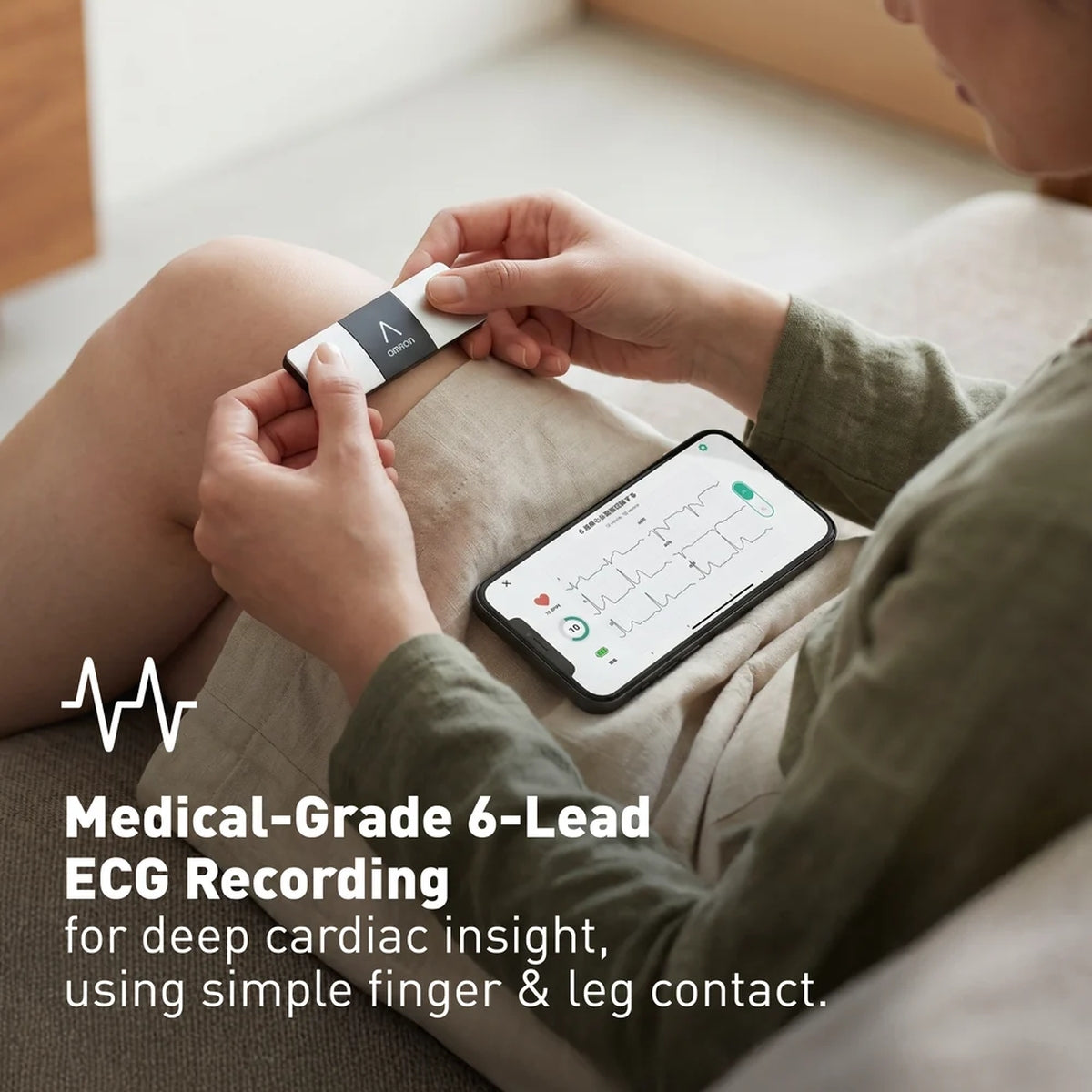

4. For six-lead recording, place both thumbs on the electrodes and the rear electrode against bare skin above the left knee or inside the left ankle.
5. For single-lead recording, place the device on a flat, non-metal surface and touch both electrodes with your fingers.
6. Stay relaxed and still without talking until recording finishes. Review and share the saved recording through the app.

Usage Duration / Frequency
The default recording lasts 30 seconds and is adjustable in the app. Follow your healthcare professional’s recommended monitoring schedule.

Cleaning / Maintenance / Storage
• Clean with a soft, lint-free cloth. For heavier dirt, use a cloth lightly moistened with neutral detergent, then dry.
• Dirty electrodes may be wiped with a soft cloth moistened with alcohol-based sanitiser. Avoid abrasive or volatile cleaners.
• Operating conditions: +10°C to +45°C; 10–95% RH, non-condensing; 700–1060 hPa.
• Storage / transport: −20°C to +60°C; 10–95% RH, non-condensing.
• Keep dry and protected from sunlight, dust and impact. Remove the battery during prolonged storage.

Safety / Regulatory Information
• Do not self-diagnose or self-treat using recordings. Seek medical advice for symptoms or concerns, regardless of the displayed result.
• Not for children or people unable to express themselves. Pacemaker users require particular caution and medical guidance.
• Do not record while driving, exercising or charging your phone.
• Keep other electrical equipment at least 30 cm away, except the recording smartphone. Avoid MRI, CT and simultaneous use with other medical electrical equipment.
• Keep the coin battery away from children; seek urgent medical care if swallowed.

Package Contents
• OMRON HCG-8060T monitor
• One CR2016 lithium battery, factory-installed
• Instruction manual

SKU: 100664929
